Description

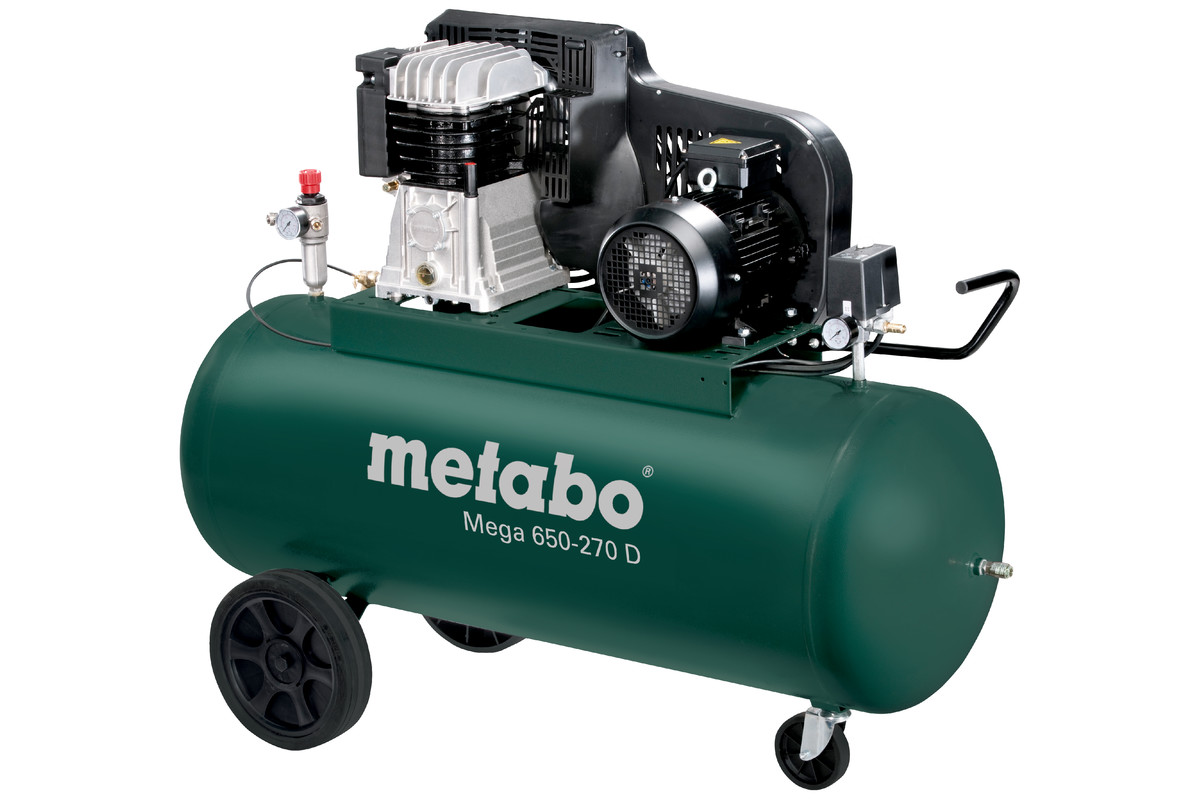

- Powerful, robust compressor with V-belt drive for demanding use
- Belt drive for low speeds and particularly smooth running
- 2-stage compression for particularly high power and long life
- For three-phase current
- Adjustable, application-appropriate operating pressure through filter pressure regulator with pressure gauge
- Good cold start due to pressure switch with pressure relief valve
- Additional pressure gauge for displaying the boiler pressure
- Overload protection: protects the motor from overheating
- Oil-lubricated 2-cylinder compressor for high airflow rate
- Aftercooler for less condensation
- Rubber, stable wheels and pull handle for mobile use
- 10-year boiler warranty against perforation
Technical Values
Parameters
Suction power
650 l/min
Filling capacity
520 l/min
Effective quantity delivered (at 80% max pressure)
450 l/min
Max. pressure
11 bar
mains voltage
380 - 415 V
Power consumption
4 kW
Max. rpm
1400 /min
Boiler content
270 l
Sound pressure level (LpA)
88 dB(A)
Sound power level (LwA)
97 dB(A)
Dimensions
1530 x 600 x 1160 mm
Weight
170 kg
Cable length
1.5 m
Noise emission
Sound pressure level
88 dB(A)
Sound power level (LwA)
97 dB(A)
