Description

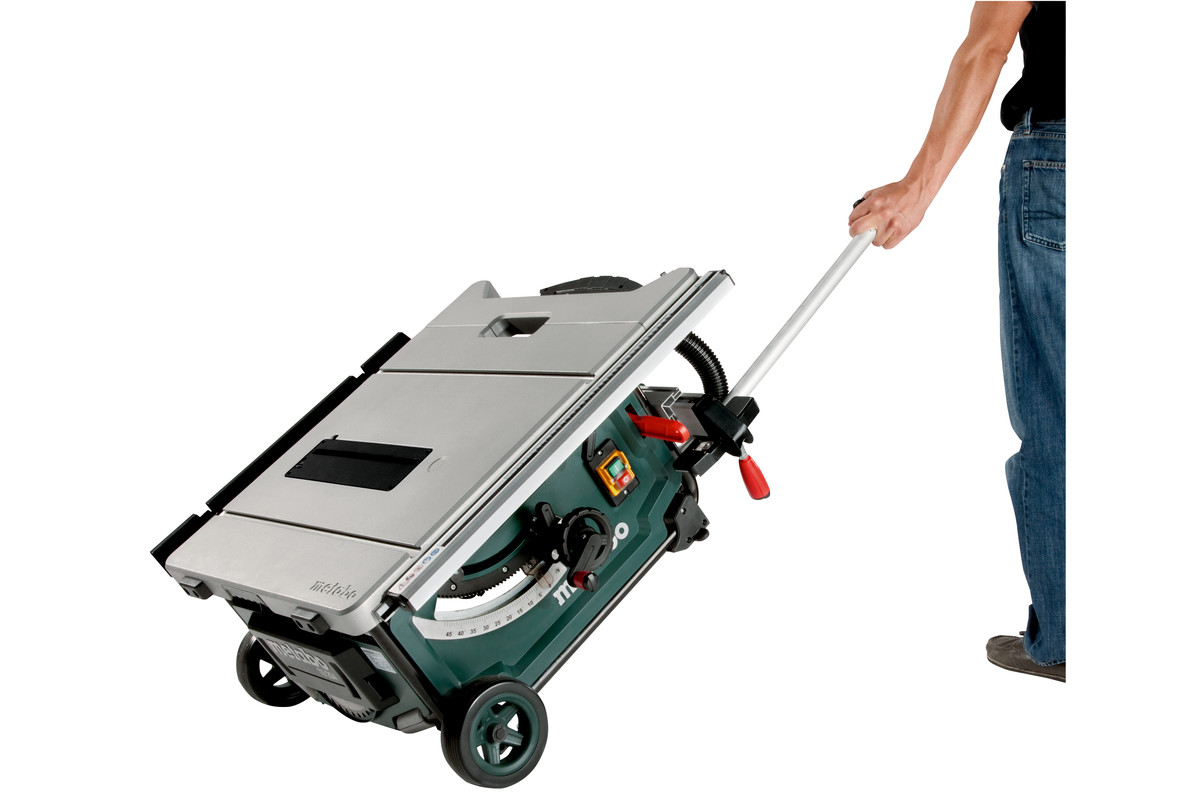

- Extremely light table saw with trolley function for more mobility on the construction site
- Integrated base made of stable die-cast aluminum (patented): unfolded in seconds; stands firm
- Very compact with folded base for easy transport and space-saving storage
- Second working height for cutting close to the floor
- Torsion-resistant tubular frame construction for the most demanding requirements on the construction site and during assembly
- Cables and all attachments can be stored on the housing
- High Tensile Motor with Electronic Overload Protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents accidental starting of the machine after power failure
- Soft start for long motor and drive life
- Precise parallel guide with double clamping and quick fastening
- Exact saw blade inclination via gear ring guide
- Automatic reset at 0-45° after concealed cut
- Simple saw blade change due to spindle lock
- Riving knife can be lowered without tools for concealed cuts and transport
- Precise, extendable table top widening and extension for extra large support surface
Technical Values
Parameters
Dimensions
740 x 750 x 355mm
Max. support surface
970 x 995mm
working height
850 / 355mm
Cutting height
0 - 87mm
Max. cutting height 90°/45°
87 / 54mm
Max. cutting width on the parallel fence
630mm
Max. material width on the angle guide
200mm
No-load speed
4200 /min
Cutting speed
56 m/s
Saw blade
254 x 30mm
Saw blade tilt range
-1.5 - 46.5°
mains voltage
220 - 240 V
Power consumption S1 100%
1700 W
Power consumption S6 20%
2000 W
Weight
33.4 kg
Cable length
3.1 m
Noise emission
Sound pressure level
99 dB(A)
Sound power level (LwA)
112 dB(A)
Measurement uncertainty K
3 dB(A)
